Victory (of sorts) Over the 800,000 Pound Beast!
When we coupled in to the Museum’s Frisco steam locomotive #4501, we never dreamed it would take nearly a year to move it the final 1,600 feet to its permanent exhibit track. After all, the 1942 Baldwin 4-8-4 had traveled effortlessly from Dallas to Frisco during the big move in 2013. But, as the big locomotive was being slowly pulled around the long curve on the Museum’s lead track, we saw daylight under driving wheel #2 – not good.
That was December of 2022, and that was also when we learned just how non-compliant a piece of railroad equipment can be despite its graceful and impressive presence. The #4501 is sort of the favorite son at the Museum. Beyond its beauty and functionality, the locomotive represents the pinnacle of steam on the Frisco, and is a favorite in a community that derives its name from the line.
That day was the beginning of a crash course on steam locomotive running gear and track dynamics. We had immediately stopped to assess the situation and reached a group consensus to persevere. We slowly crept along another few feet, only to have driver #2 climb the rails to within a 1/4” of derailing. It simply wasn’t falling in line with the other three driving wheels. But why? We had done our homework. The 4500-class engines were designed to negotiate 20-degree curves. We were on a 15-degree curve with 1” of super elevation. Nevertheless, the beast said “no”. We tied it down and went home to fight another day.
Frisco 4501’s #2 driving wheel is seen here perilously close to falling off the inside of the rail on the engineer’s side. In fact, it did so on at least four occasions, necessitating the use of a re-rail frog.
The other side of the same driving wheel is seen here with its flange riding on top of the rail on the fireman’s side. Driver #2 was out of alignment by at least ¾”, even on tangent track.
Obviously, derailing the 4501 was not an option. If driver #2 derailed, we could handle it. But if one or more driving wheels followed suit, we had a big problem. The locomotive was sitting on a long curve with a labyrinth of tracks and turnouts on one side and Stewart Creek on the other. We also noticed it had pulled the track out of alignment, trying to straighten out the curve by four inches. Some of us are old enough to remember the 4500 turning a rail over on its side when being moved from the Tulsa Zoo to another display site in 1984. That proved to be very costly despite being accessible to cranes.
We were able to work around the 4501 for most of 2022, but it became a fixture behind the Frisco Discovery Center – majestic and defiant. All the while, we consulted the experts, searched our technical archives, and tried in vain to contact the roundhouse workers that had long departed this earth. We were sure they had some simple antidote, or at least would snicker at our predicament.
The Museum’s set of re-rail frogs came in handy several times during the slow, arduous move of 4501. Driver #2 on the engineer’s side is being coaxed back in alignment here, as the wheel rides over the apex of the frog.
On a couple of occasions, driver #2’s flange on the fireman’s side forced a kink in the rail rather than riding up. As a precaution, we double spiked the inside of the last curve to prevent the rail from turning over.
The experts provided great assistance, and we addressed every item they suggested. These included inspection and lubrication of the driving wheel self-aligning mechanism, backing off the journal box shoes and wedges, measuring lateral clearance of the rods, lots of oil & grease, inspection of journal box to frame pedestal clearances, servicing the Hennessy lubricators, and relaxing the gauge on curves. Each work session was followed by an attempted move in the direction of 4501’s ultimate destination at the foot of Exhibit Track 5. Each attempt yielded incremental positive results, but driver #2 was still not willing to move from an extreme lateral position to the left – only an inch perhaps, but not in favor of a left-hand curve.
Not willing to go down in defeat, our dedicated crew pressed on. We were able to get the locomotive to tangent (straight) track, but not without driver #2 climbing and sitting back down several times along the way. Finally, we came up with a more aggressive plan that had a comfortable degree of risk based on the knowledge we had gained.
Slowly, but surely, we spent the next several weekends of the new year coaxing the 4501 along, sometimes measuring progress in inches. Fortunately, it negotiated switches without incident, but curves were problematic at best. Driver #2 derailed at least two times, requiring the use of re-rail frogs. The frogs were also used to force the driver back in alignment to prevent derailment. There were three occasions where the driver followed curves but started to turn over the rail. One such area had the inside spikes pulled up over 2 inches. That area was double spiked before another move was attempted – some 250 feet.
Here’s another dramatic view of driver #2’s flange riding on top of the rail on the fireman’s side.
A member of our crew, Steve Fass, shovels ballast in preparation for installing a re-rail frog.
To wrap up this saga, #4501 was finally moved along the last curve on its route on Saturday, March 2. Following one derailment and re-railing of the balky driver, the wheel set traveled the remainder of the curve with one flange riding atop the rail, and the other side with the wheel on about half the rail head. It finally settled back down once the locomotive entered the last 150 feet of straight track where it would reside. It is now on permanent display and majestic as ever. We use the word "permanent" as a nice way of saying “not again in our lifetimes”.

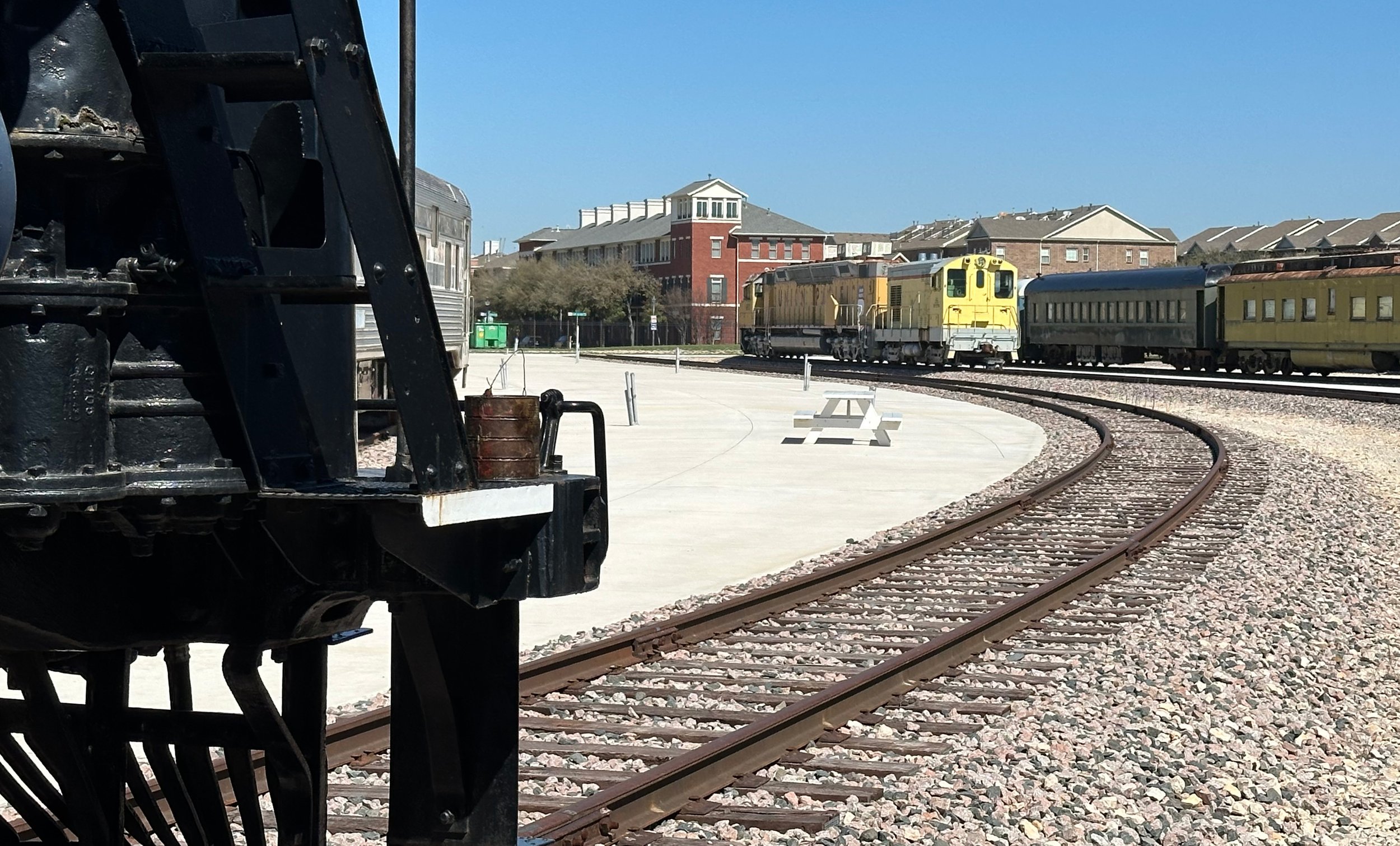

On March 2nd, the final curve lies ahead of 4501. Driver #2, with its flange on the fireman’s side riding atop the rail, moved slowly and carefully along the 15-degree curve, setting back down once out of the curve.
Frisco 4501 has just arrived at its final exhibit location at the foot of Track #5. Our engineer, Steven Wainscott, eased the big Northern 4-8-4 to a stop, while Dick Thompson placed a chock behind the wheels.
Our sincere thanks to the steam gurus out there who imparted their collective knowledge, including Scott Lindsey, Doyle McCormack, and Clem Harris. We never quite solved the mystery of driver #2, but our dedicated crew was victorious! Somewhere in the dust and dirt of Frisco’s Springfield, Missouri shops lies the answer, but we’ll leave that for the next generation. We’ll place a note in the files and move on to the next task at the Museum!
